Double Sided Tape Application Machine

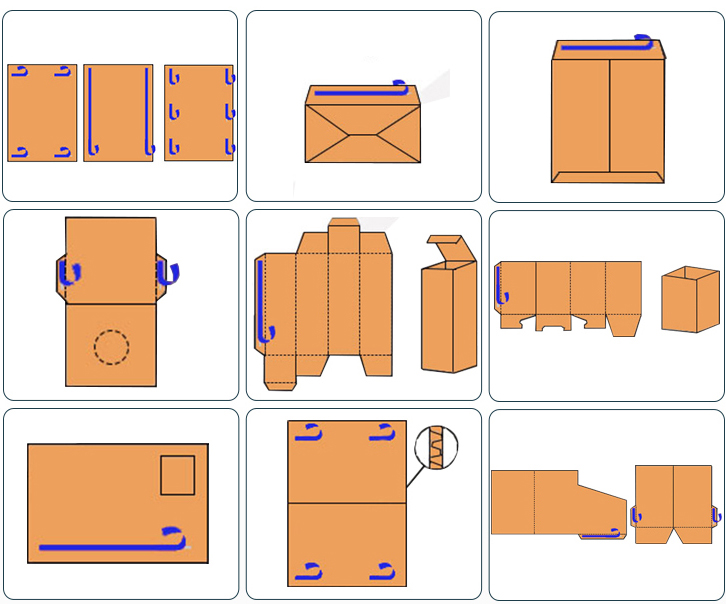

TMA 1000 double sided tape application machine and double sided tape applicator will reduce the time spends handing products which are folders, boxes, displays, stands etc.The machine has a PLC touch screen and PLC programs that enables you to program and save a multitude of tasks related to the handling of different products.The tape applicator head adopts magnet valve and air cylinder working. The tape applicator quantity can be installed 2 sets up to max 4 sets.
|
Model |
TMA-1000 |
|
Max open blank width |
1000mm |
|
Min open blank width |
110mm |
|
Working Speed |
30m/min |
|
Material |
Cardboard, corrugated board |
|
Max material thickness |
12mm |
|
Min paper grams |
≥108g/m² |
|
Max number of spots |
4 |
|
Min spot length |
35mm |
|
Min distance between spots |
25mm |
|
Min horizontal distance between tape strips |
75mm (center to center) |
|
Tape width |
6mm up to 30mm |
|
Taping precision |
+/- 1mm |
|
Taping head quantity |
2~4 sets |
|
Total power |
250W |
|
Electricity needs |
220V, 50HZ |
|
Total weight |
125kg |
|
Machine dimension |
1650x1400x1570mm (L x w x H) |
|
Model |
TA-30 |
|
|
Frame |
Stainless steel |
|
|
Internal tape roll core diameter |
76mm |
|
|
Max external tape roll diameter |
400mm |
|
|
Tape width |
6mm to 30mm |
|
|
Applicator programming |
Touch screen or your system |
|
|
Magnet valve |
24 volt DC |
|
|
Sensor |
1 piece |
|
|
Compressor air |
6 bar |
|
|
Weight |
5kgs |
